iCare EIDON
iCare EIDON widefield TrueColor confocal fundus imaging system
Key features
- Multiple imaging modalities including TrueColor, blue, red and Red-Free and infrared confocal images
- Widefield, ultra-high-resolution imaging
- High quality images through cataract and other media opacities
- Dilation-free operation (minimum pupil 2.5 mm)
- Flexibility of fully automated and fully manual mode
- All-in-one compact design, no additional PC required
iCare EIDON
| widefield TrueColor confocal fundus imaging system

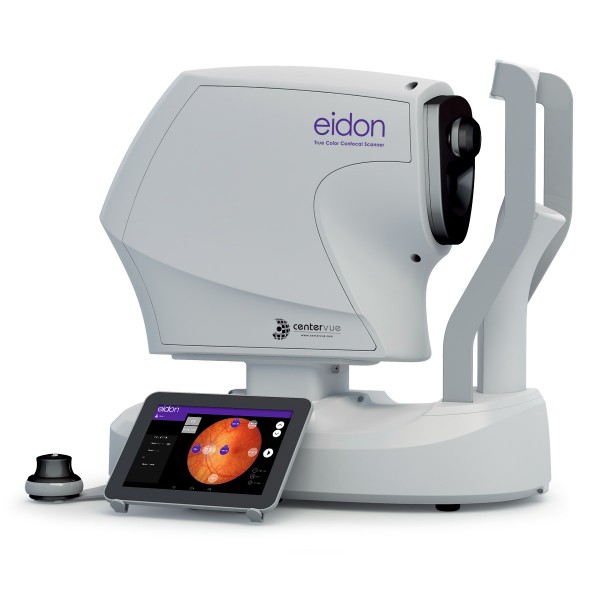

iCare EIDON— The First TrueColor Confocal Imaging Device for Ultra-high Resolution Widefield Imaging
iCare EIDON is the first TrueColor Confocal system that combines the best features of Scanning Laser Ophthalmoscopy (SLO) systems with fundus photography to set new performance standards in retinal imaging. It’s the perfect retinal imaging system that provides TrueColor, and widefield views in multiple imaging modalities. EIDON provides unsurpassed image quality and a unique, live, confocal view of the retina in a dilation-free operation.
Offering the best of confocal technology, EIDON guarantees increased image sharpness, optical resolution, greater contrast. that takes retinal diagnostics to the next level. This combined with its easy-to-use interface and patient-friendly features makes the EIDON a valuable and efficient device in any clinical setting.
Class and type of applied part | |
---|---|
>1, B (according to EN 60601-1) | |
IP classification | IPX0 (according to the degree of protection provided by the enclosure with respect to harmful penetration of particulate matter or water) |
Image acquisition | |
---|---|
Non-mydriatic (minimum pupil size 2.5 mm) | |
Field of individual image | 60° (H) x 55° (V) captured in a single exposure [Center of Eye Angle of 90° (H) x 80° (V)] |
Sensor resolution | 14 Mpixel (4608 x 3288) |
Light source | infrared (825 - 870 nm) and white LED (440 - 650 nm) |
Wide field Mosaic | out to 150° in manual mode [Center of Eye Angle of 210°] |
Working distance | 28 mm |
Resolution | 60 pixel/deg |
Optical resolution on the retina | 15 microns |
Pixel pitch | 4.9 micron |
Imaging modalities | color, infrared, red-free |
Dimensions | |
---|---|
Unit Size | 360 (W) x 590 (H) x 620 (D) mm |
Unit Weight | 25 kg |
Power supply | |
---|---|
100-240 VAC, 50-60 Hz | |
Power consumption | 80 W (see label) |
Accessories |
---|
|
Other Features | |
---|---|
100-240 VAC, 50-60 Hz | |
Imaging modalities | color, IR, red-free |
Automatic operation | auto-alignment, auto-focus, auto-exposure, auto-capture |
Auto-focusing adjustment range | -12D to +15D |
Hard disk | SSD, 256 GB |
|
Fully Automated, Comfortable, and Easy-to-Use Experience
iCare EIDON provides the flexibility of going from fully automatic to fully manual operations — offering features like auto-alignment, auto-focus, auto-exposure, auto-capture, and auto-mosaic. iCare EIDON is easy to use and requires minimal staff training, which can speed up examination time and in turn improve patient workflow. With its ergonomic, motorized chin rest, soft flash, and no need for dilation, iCare EIDON promises enhanced comfort to patients.iCare EIDON multi-touch tablet makes magnification and review easy.
Additionally, the remote viewer feature makes also remote data review effortless, allowing any computer or laptop on the same local area network (LAN) to review iCare EIDON images remotely, enabling data access and detailed analysis on multiple review stations.
Harnessing the Power of Confocal Imaging
Confocal imaging is a standard in excellent image quality. It’s superior to conventional fundus photography as it blocks the back-scattered light of structures from the outside of the retinal focal plane.
The EIDON provides enhanced image quality, with increased sharpness, better optical resolution, and greater contrast. It preserves image quality even in the case of media opacities, including cataracts, and can with pupils as small as 2.5mm without the need for dilation.

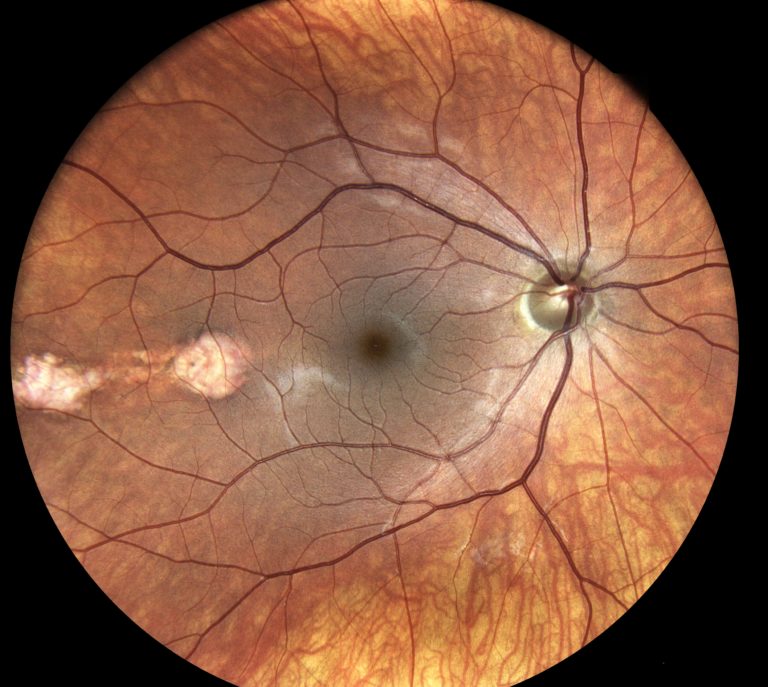

TrueColor Retinal Images for Unsurpassed Quality
iCare EIDON uses white light LED to provide TrueColor imaging with no distortion and superior color fidelity. Using white light LED, the retina appears as it looks when directly observed, as the entire visible spectrum is present in the captured image.
EIDON TrueColor can facilitate the diagnosis and monitoring of retinal diseases and improve retinal diagnostics capabilities.

Multiple Imaging Modalities for a Complete Picture
iCare EIDON offers crisp and sharp widefield images representing the actual appearance of the retina in multiple imaging modalities. White LED illumination provides high-quality TrueColor images, Red-free filtering enhances visualization of retina vasculature, blue images provide improved view of the Retinal Nerve Fiber Layer (RNFL) and red channel allows light to penetrate into the deep layers of the retina. Infrared light provides detailed information corresponding to the choroid.
Ultra-Widefield Details in High Definition
iCare EIDON’s widefield optics from 60° to 110° field of view (or from 90° to 160° if measured from the Center of the Eye) allows imaging of the central retina as well as the periphery.
EIDON TrueColor confocal technology applied to widefield imaging is particularly crucial as it helps improves the detection, analysis, and monitoring of pathologies that could arise in the peripheral retina. EIDON’s widefield features help preserve the sharpness and details even in the periphery, facilitating improved and early diagnosis.
