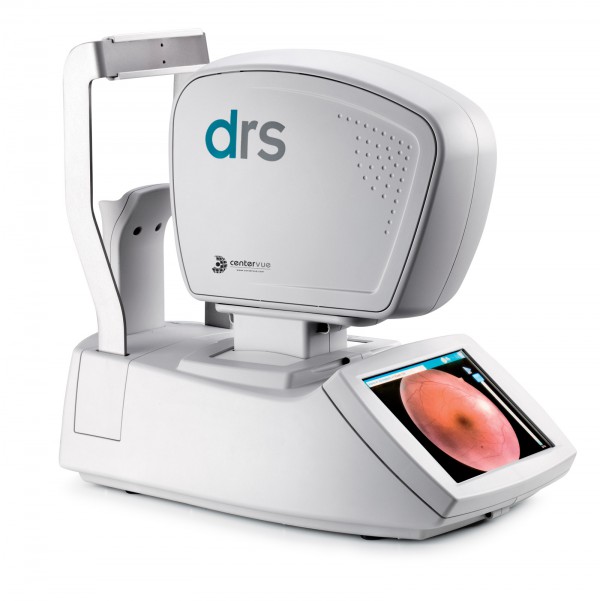

iCare DRS

iCare DRS automated digital retinography system

Key features

  • Fully automated: patient autosensing, auto-alignment, auto-focus, auto flash adjustment, auto-capture
  • Short exam time
  • High quality color and Red-free images
  • Minimal training required
  • Compact and clean design
  • No additional PC required
  • Touch-screen operation

iCare DRS

| automated digital retinography system

iCare DRS fundus camera for high quality retinal images


iCare DRS is a fast, easy to use and fully automated fundus camera. DRS creates high quality retinal images without the use of a mydriatic agent for pupil dilation. The device can acquire 45° color retinal images and also support multiple field automatic acquisition protocols, providing up to 7 fields which can be automatically stitched in an 80° mosaic. DRS is easy to use, requires minimal operator training and can be efficiently operated through an intuitive touchscreen interface.

iCare DRS can align itself to the patient’s eye, focus on the retina and capture the image without any operator’s intervention. Thanks to its user-friendly operation and efficiency, the DRS is a great device for mass screening as it is designed to optimize the patient workflow.

Retinal Imaging
Field of view Non-mydriatic (minimum pupil size 2.5 mm)
Non mydriatic operation 60° (H) x 55° (V) captured in a single exposure [Center of Eye Angle of 90° (H) x 80° (V)]
Fixation target 14 Mpixel (4608 x 3288)
Operating distance infrared (825 - 870 nm) and white LED (440 - 650 nm)
Sensor size out to 150° in manual mode [Center of Eye Angle of 210°]
Sensor resolution 28 mm
Dimensions
Unit Size 58 x 55 x 33 cm (23’ x 22’ x 13’)
Unit Weight 19 kg (42 lbs)
Other Features
  • Power cord, spare fuses, dust cover
  • Patient presence sensor
  • Motorized chin-rest
  • Automatic alignment using two pupil cameras
  • Auto-focus (adjustment range -15D to +15D)
  • Auto-flash level adjustment
  • Low power flash
  • 10.4” touch-screen color display
  • Embedded PC (160 GB hard disk)
  • Wi-Fi and Ethernet connectivity
  • Export to remote folder (for import into EMR)
  • Multiple fields acquisition
  • Stereo Pair
  • External Eye

Fully automated for improved workflow


iCare DRS offers the advantage of fully automated operations that require minimal operator training. The device offers an automatic alignment feature that uses two pupil cameras to align itself to the target level. The auto-focus has an adjustment range of -15D to +15D and can focus on the retina accurately. The auto-flash level adjustment ensures patient comfort and captures the image quickly and efficiently. This along with the short exam time makes DRS an efficient device that improves the workflow in any setting.

iCare DRS has a patient presence sensor, an ergonomic design, and a motorized chin rest designed to ensure a pleasant patient experience.



The device generates a low-power flash to ensure patient comfort and the quick examination time makes the whole process an effortless one.

DRS_1-iCare

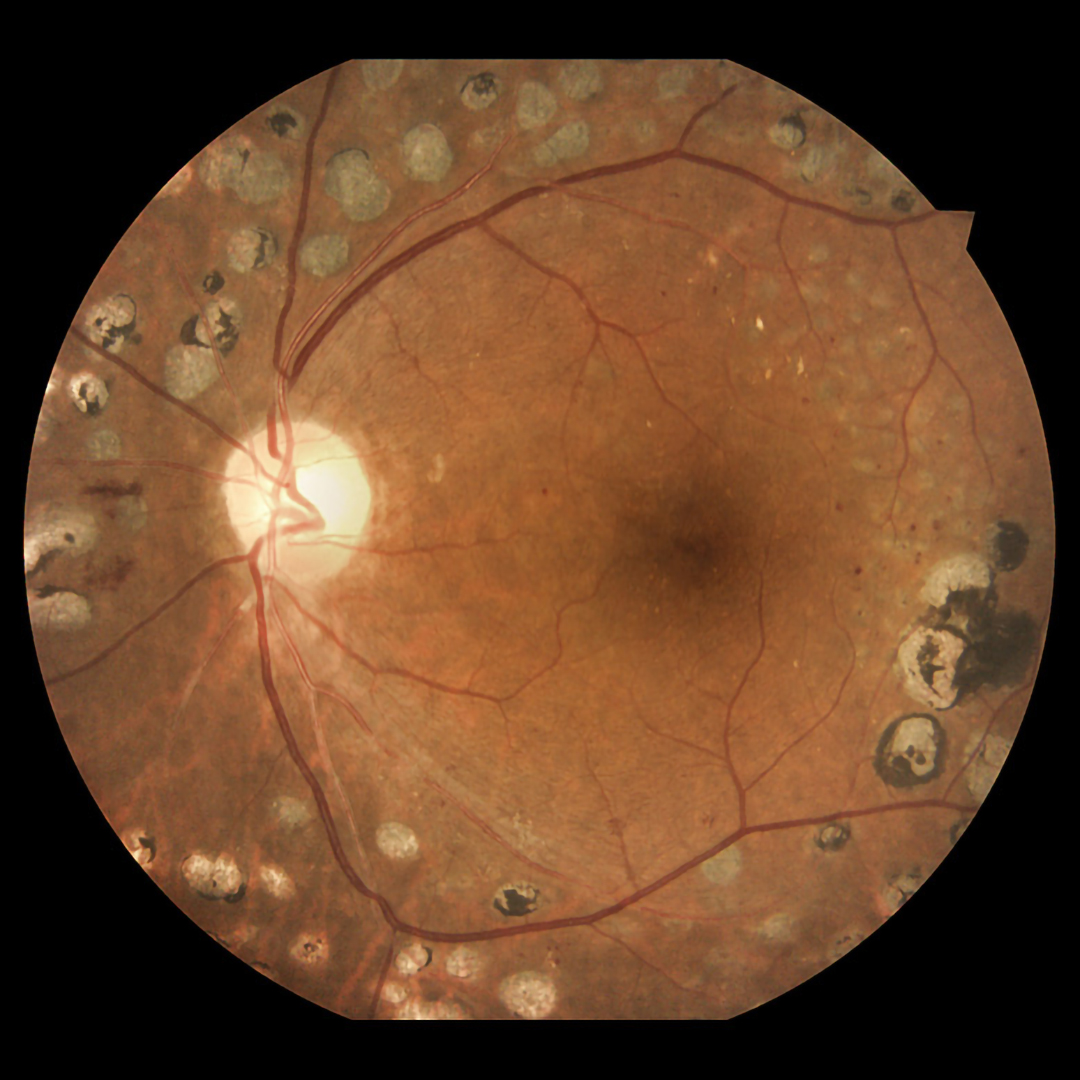

iCare DRS Creates High Quality Retinal Images in Color


iCare DRS can acquire 45° color retinal images and also support multiple field automatic acquisition protocols, providing up to 7 fields which can be automatically stitched in an 80° mosaic.
